Trek Emonda SLR 6
$7,699.99
Details
Emonda SLR 6 is an ultralight, aerodynamic carbon road bike that's designed and built to soar up climbs with serious speed. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from a superlight OCLV layup. You also get the precision shifting of a wireless electronic Shimano 105 Di2 drivetrain.
- This ultra-fast climbing bike is aero, weighs in at under 700g, and rides like a dream
- Wireless 105 Di2 delivers ever faster, smoother, and more responsive shifts than ever
- 800 Series OCLV Carbon is intensely light and meticulously crafted for next-level performance
- Aerodynamic tube shaping makes this Émonda ready to roll wicked fast on flats and climbs alike
- The Aeolus Pro 37 wheels are designed for climbing, and were developed alongside Émonda

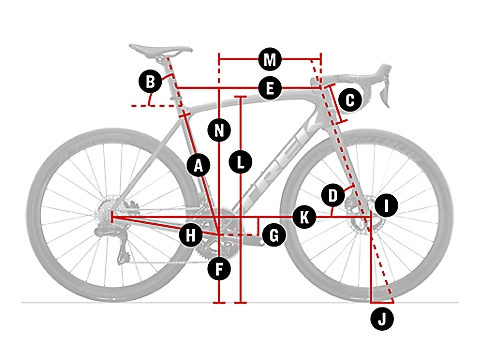

| Frame size number | 47 cm | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 10 | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| D — Head angle | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| E — Effective top tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.2 | 7 | 7 | 6.8 | 6.8 | 6.8 |
| H — Chainstay length | 41 | 41 | 41 | 41 | 41 | 41.1 | 41.1 | 41.2 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 4 | 4 | 4 |
| J — Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| K — Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101 |
| L — Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| M — Frame reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| N — Frame stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62 |
| Stem length | 80 | 80 | 90 | 90 | 100 | 110 | 110 | 110 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) | 61.5 | 64.5 | 67.5 | 70 | 73 | 75 | 77 | 79 |
| Saddle rail height min (w/tall mast) | 59 | 62 | 65 | 67.5 | 70.5 | 72.5 | 74.5 | 76.5 |
| Saddle rail height max (w/tall mast) | 65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 | 152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm |
| 58 | 180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Specs
| Fork | Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
|---|---|
| Rims | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready |
| Chain | Shimano SLX M7100, 12 speed |
| Frame | Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| Brakes | Shimano 105 hydraulic disc, flat mount |
| Rotors | Shimano RT70, centerlock, 160mm |
| Saddle | Bontrager Aeolus P2 Elite, 155mm width |
| Crankset | Shimano 105 R7100, 50/34, 165mm length |
| Seatpost | Bontrager carbon seatmast cap, 20mm offset, short length |
| Shifters | Shimano 105 R7170 Di2, 12 speed // Shimano 105 R7170 Di2, 12 speed |
| Handlebars | Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 38cm width, 80mm stem length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Rear Derailleur | Shimano R7150 Di2, 36T max cog |
| Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Cassette/Freewheel | Shimano 105 7100, 11-34, 12 speed |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Axinite Flip/Trek Black / 47cm / 700c | 601842958575 | 5317925 |
| Axinite Flip/Trek Black / 50cm / 700c | 601842958568 | 5317926 |
| Axinite Flip/Trek Black / 52cm / 700c | 601842958551 | 5317927 |
| Axinite Flip/Trek Black / 54cm / 700c | 601842958544 | 5317928 |
| Axinite Flip/Trek Black / 56cm / 700c | 601842958537 | 5317929 |
| Axinite Flip/Trek Black / 58cm / 700c | 601842958520 | 5317930 |
| Axinite Flip/Trek Black / 60cm / 700c | 601842958513 | 5317931 |
| Axinite Flip/Trek Black / 62cm / 700c | 601842958506 | 5317932 |
| Azure / 47cm / 700c | 768682205037 | 5280576 |
| Azure / 50cm / 700c | 768682204955 | 5280577 |
| Azure / 52cm / 700c | 768682205198 | 5280578 |
| Azure / 54cm / 700c | 768682205051 | 5280579 |
| Azure / 56cm / 700c | 768682204993 | 5280580 |
| Azure / 58cm / 700c | 768682205013 | 5280581 |
| Azure / 60cm / 700c | 768682204979 | 5280582 |
| Azure / 62cm / 700c | 768682205150 | 5280583 |
| Dark Prismatic/Trek Black / 47cm / 700c | 768682688922 | 5293378 |
| Dark Prismatic/Trek Black / 50cm / 700c | 768682688625 | 5293379 |
| Dark Prismatic/Trek Black / 52cm / 700c | 768682688762 | 5293380 |
| Dark Prismatic/Trek Black / 54cm / 700c | 768682705766 | 5293381 |
| Dark Prismatic/Trek Black / 56cm / 700c | 768682705643 | 5293382 |
| Dark Prismatic/Trek Black / 58cm / 700c | 768682705742 | 5293383 |
| Dark Prismatic/Trek Black / 60cm / 700c | 768682705827 | 5293384 |
| Dark Prismatic/Trek Black / 62cm / 700c | 768682705841 | 5293385 |
| Metallic Red Smoke to Red Carbon Smoke / 47cm / 700c | 768682205358 | 5280592 |
| Metallic Red Smoke to Red Carbon Smoke / 50cm / 700c | 768682205310 | 5280593 |
| Metallic Red Smoke to Red Carbon Smoke / 52cm / 700c | 768682205235 | 5280594 |
| Metallic Red Smoke to Red Carbon Smoke / 54cm / 700c | 768682205334 | 5280595 |
| Metallic Red Smoke to Red Carbon Smoke / 56cm / 700c | 768682205174 | 5280596 |
| Metallic Red Smoke to Red Carbon Smoke / 58cm / 700c | 768682205075 | 5280597 |
| Metallic Red Smoke to Red Carbon Smoke / 60cm / 700c | 768682226452 | 5280598 |
| Metallic Red Smoke to Red Carbon Smoke / 62cm / 700c | 768682226155 | 5280599 |
| Viper Red / 47cm / 700c | 768682178591 | 5280568 |
| Viper Red / 50cm / 700c | 768682205136 | 5280569 |
| Viper Red / 52cm / 700c | 768682205099 | 5280570 |
| Viper Red / 54cm / 700c | 768682205273 | 5280571 |
| Viper Red / 56cm / 700c | 768682205112 | 5280572 |
| Viper Red / 58cm / 700c | 768682205259 | 5280573 |
| Viper Red / 60cm / 700c | 768682205211 | 5280574 |
| Viper Red / 62cm / 700c | 768682205297 | 5280575 |
| Deep Smoke / 47cm / 700c | 768682178270 | 5280560 |
| Deep Smoke / 50cm / 700c | 768682178294 | 5280561 |
| Deep Smoke / 52cm / 700c | 768682178430 | 5280562 |
| Deep Smoke / 54cm / 700c | 768682178317 | 5280563 |
| Deep Smoke / 56cm / 700c | 768682178539 | 5280564 |
| Deep Smoke / 58cm / 700c | 768682178676 | 5280565 |
| Deep Smoke / 60cm / 700c | 768682178515 | 5280566 |
| Deep Smoke / 62cm / 700c | 768682178577 | 5280567 |
